MTP-010/020

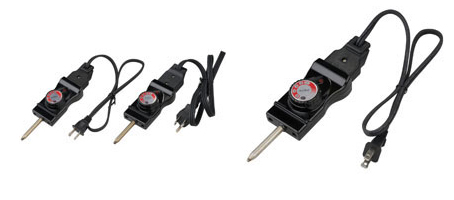

The thermal probe comes with magnetic socket MDP-2 / MDP-3. One end of the probe is inserted into cooking device to control temperature, while the other end is plugged with magnetic socket. When the power cord is being pull, the socket will detached from the probe and prevent the unit from being toppling.
It has been widely used in BBQ grill, Oil Deep Fryer, Skillet, Griddle, …etc.
Specification
| Rating | 120V AC, 15A (resistive load) |
| Maximum rated temperature of the sensing part | 250°C |
| Maximum ambient temperature | T150°C |
| Endurance | 100,000 cycles |
| Hi-pot | 1500V AC , 1 min |
| Endurance | 100,000 cycles |
| Safety Compliance | UL/CUL |
